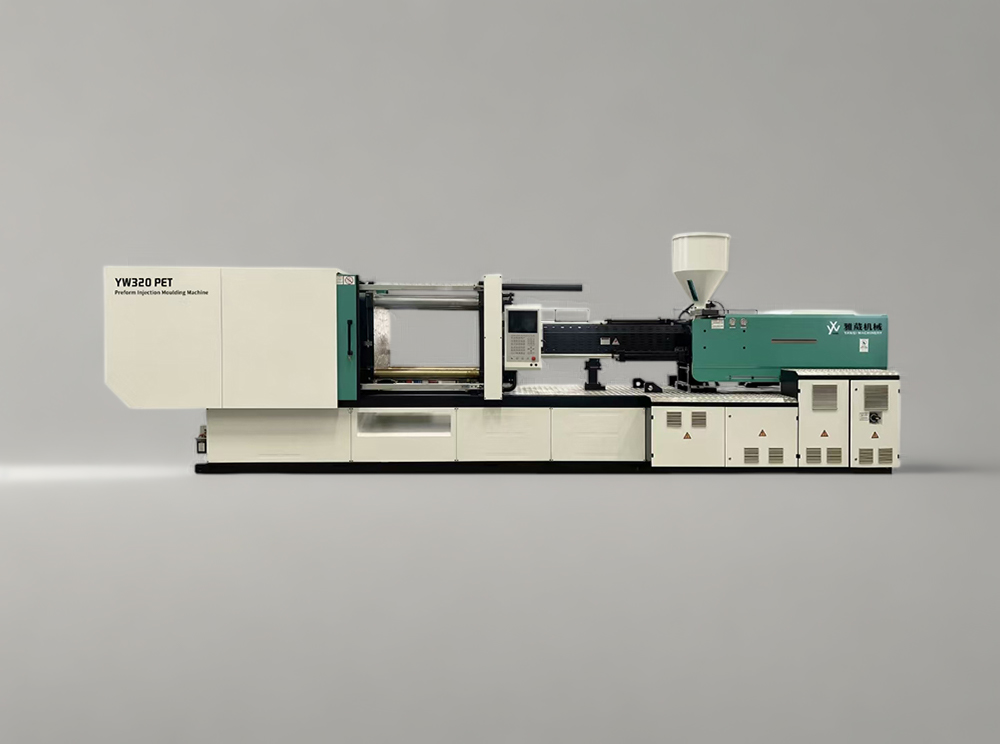

| Model | Unit | YW218 | YW268 | YW320 | |
|---|---|---|---|---|---|
| Injection unit | Injection volume (theoretical) | cm³ | 1022 | 1325 | 2703 |
| Injection weight (PET) | g | 1247 | 1616 | 3297 | |
| Injection rate (PET) | g/s | 479 | 599 | 784 | |
| Screw diameter | mm | 67 | 75 | 90 | |
| Injection pressure | MPa | 104 | 105 | 125 | |
| Screw L/D ratio | --- | 25:1 | 25:1 | 25:1 | |
| Screw stroke | mm | 290 | 300 | 425 | |
| Screw speed | r/min | 0~158 | 0~145 | 0~110 | |
| Clamping unit | Clamping force | KN | 2180 | 2680 | 3200 |
| Mold opening stroke | mm | 510 | 560 | 670 | |
| Platen size | mm | 780*780 | 835*835 | 960*960 | |
| Dist. between tie bars (H x V) | mm | 530*530 | 580*580 | 680*680 | |
| Mold thickness (Min-Max) | mm | 200~550 | 220~600 | 250~670 | |
| Ejector stroke | mm | 170 | 200 | 220 | |
| Ejector tonnage | KN | 99 | 124 | 151 | |
| Power unit | Hydraulic System Pressure | MPa | 17.5 | 17.5 | 17.5 |
| Pump motor power | KW | 32.2 | 22 | 65.9 | |
| Heater power | KW | 30 | 33 | 44 | |
| Num of temp control zones | 5 | 6 | 7 | ||
| General | Oil tank capacity | L | 420 | 480 | 630 |
| Machine dimensions (L x W x H) | m | 6.25*1.70*2.23 | 6.95*1.82*2.35 | 8.30*1.92*2.50 | |
| Machine weight | Ton | 6.5 | 8.5 | 14 | |
