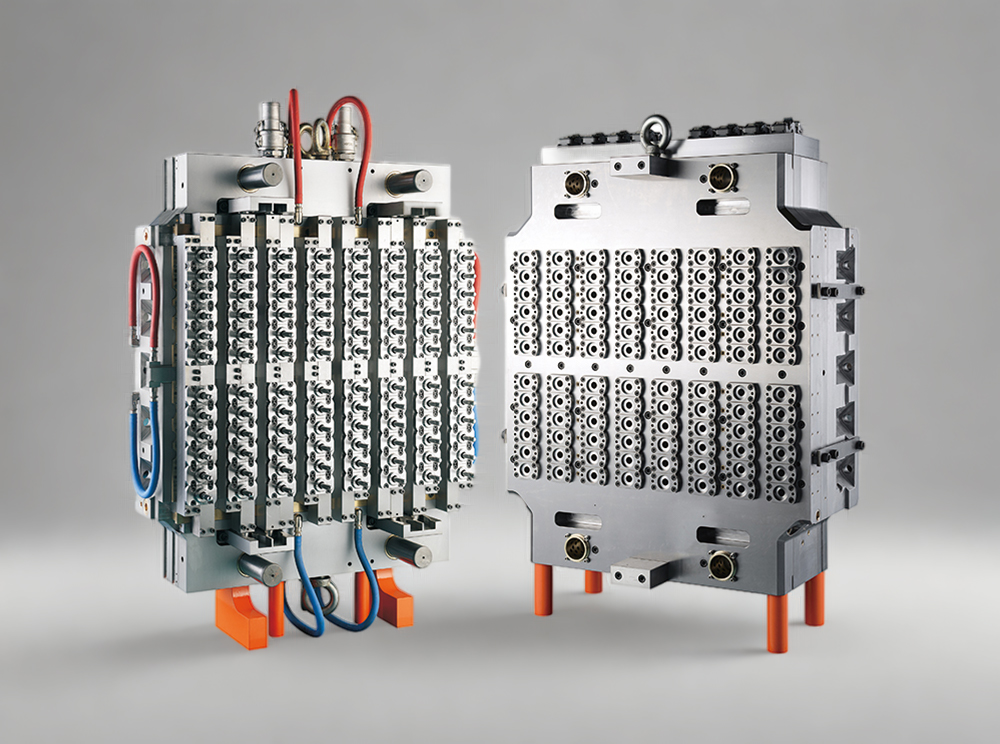

Pet Preform Mould

1. Micro Pitch Technology,Smaller machine with higher cavity quantity

2. Less Power Consumption

3. Valve Gate,no cutting

4. Advanced cooling channels shorten cycle time.

5. Excellent mold design extends mold lifespan

6. All spare parts are interchangeable

7. Preforms with lower weight and eccentricity deviation

8.  Lower AA value and reasonable IV value

9.  Neck finish as per ISBT standard.

10.  The overall structure of the mould is compact and precise, and all templates are pre-hardened;

11. The template is tempered to eliminate internal stress, and the template will not be deformed or twisted for a long time, which may cause unstable factors in use;

12. Mould base is processed by clamping templates at one time, to ensure concentricity of the forming holes and the guide column sleeve, and the overall mold base has higher precision;

13. The opening and closing of the pull plate adopts the bearing slide type degermination structure, which is reliable in structure. The mold is opened and closed as a whole, and the steps (slider, push plate, and ejection) are coordinated. The contact surfaces of all sliding parts are inlaid with self-lubricating alloy copper, and the friction coefficient small, wear-resistant;

14. The hot runner adopts the overall excavation frame inlay type, which strengthens the hot runner mold frame structure, and the hot runner template will not be deformed after long-term use, and the hot runner will not leak glue;

15. The structure of the main components has high positioning accuracy, and the disassembly is flexible, fast, and convenient for maintenance;
